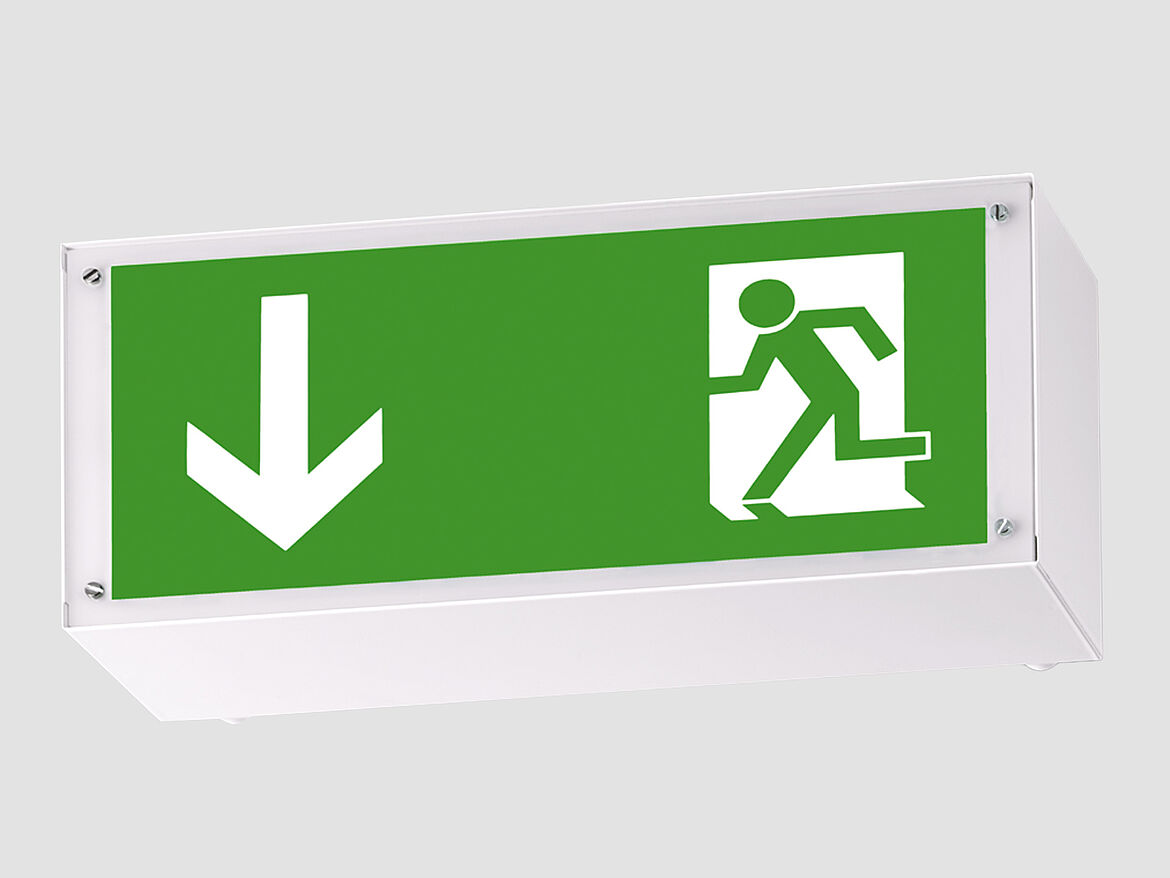

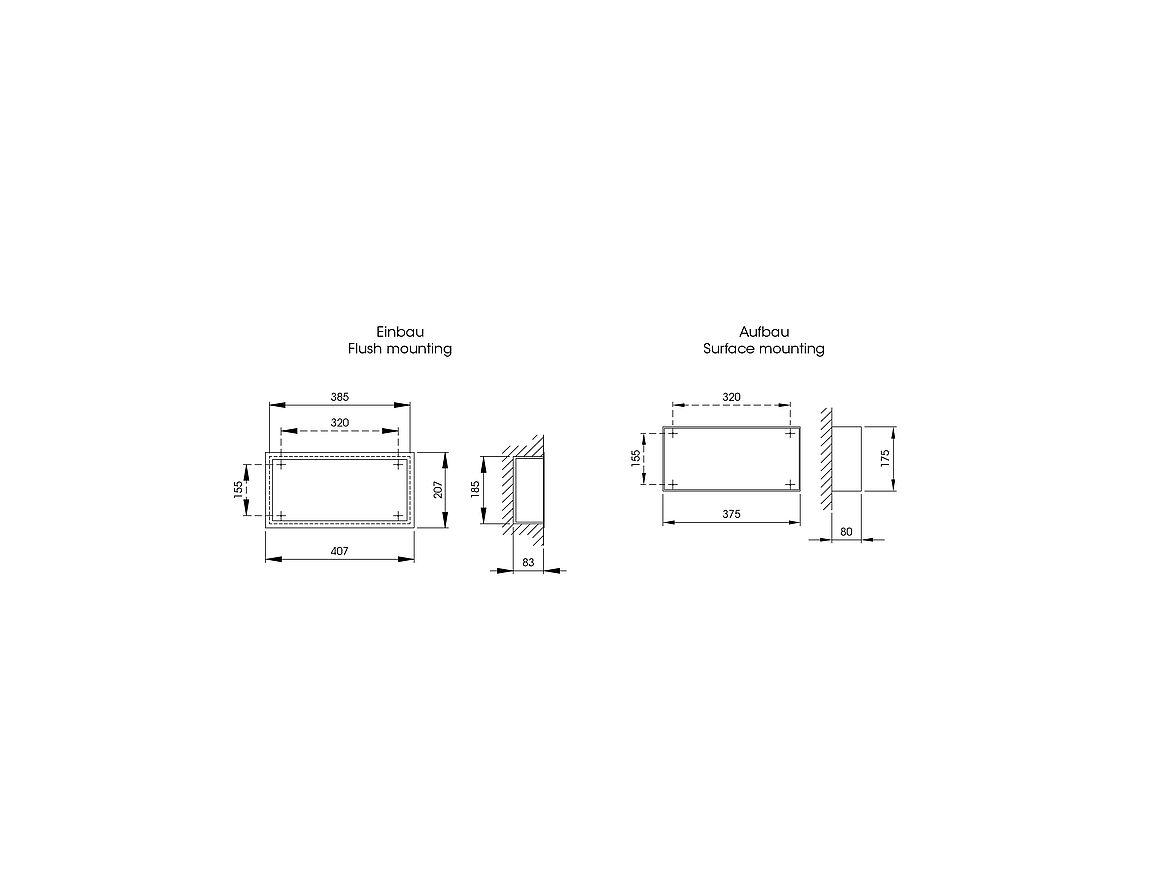

SICUROLUX-T15 is an escape sign luminaire in accordance with DIN EN 60598-1/-2-22 and DIN EN 1838. The housing is made of white zincor and is fitted with a gasket. The various design options of SICUROLUX-T15 allow both wall mounting and recessed wall mounting. The accessories, consisting of pictograms, tubular pendant, wall bracket and recessed housing, make the escape sign luminaire versatile.
SICUROLUX-T15
Material
Frame: White galvanised metal with gasket
Glass: opal acrylic glass
Luminaire details
Operating time: 3 h
Ambient temperature: 10-30°C
Lamp: 6 x 0.5 W LED incl.
Protection: IP 20 / Protection class I
Visibility range: 30 m EN 1838; 15 m SFPA
Power supply: 230 V / 50 Hz
Power consumption: Operating mode D = 7.5 VA; Operating mode B = 5 VA; Operating mode N = 7.5 VA
Operating modes
D = permanent operation [mains/emergency]
B = standby operation [emergency only]
N = mains operation [without emergency light unit]
Test facility
Light with or without fully automatic self-test. The fully automatic self-test serves to independently test the operability of the emergency light.
