Single-battery emergency light and safety light

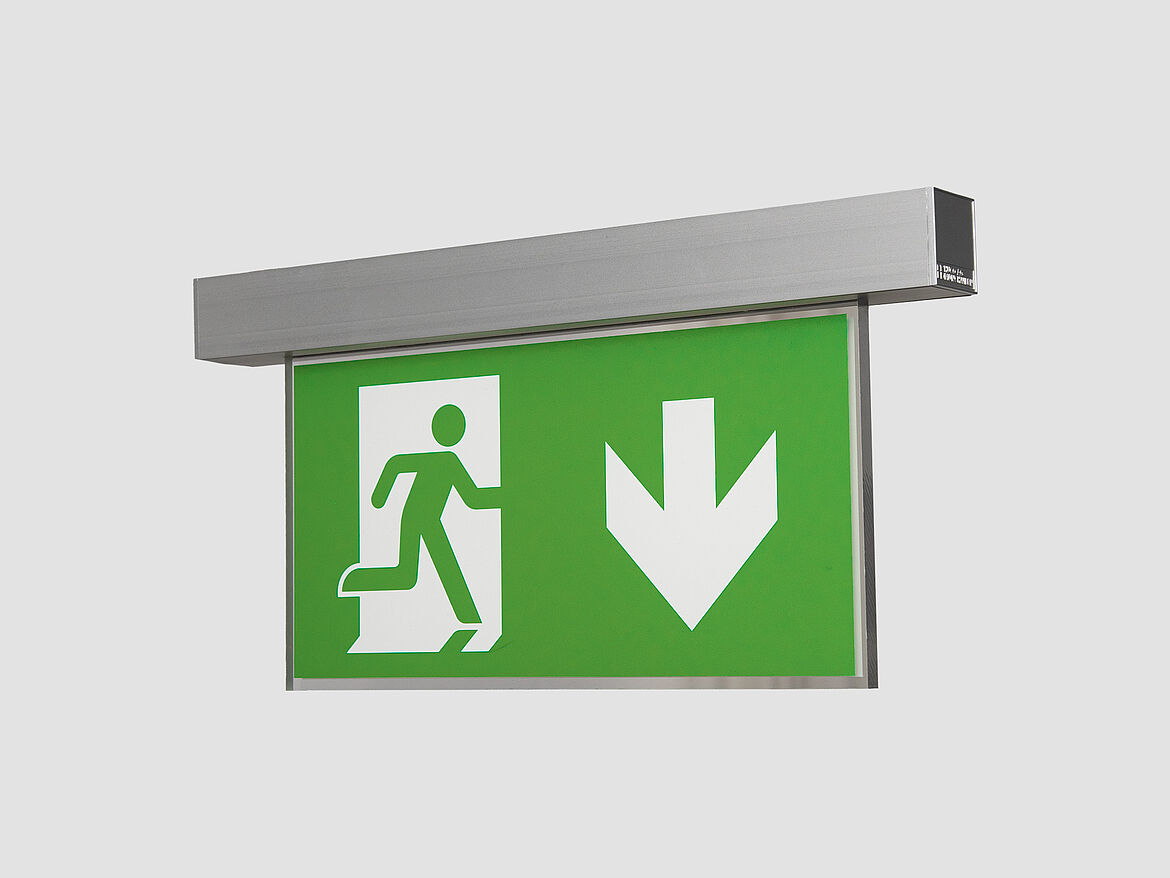

SICUROLUX-TAL300 is an escape sign luminaire luminaire or safety luminaire in accordance with DIN EN 60598-1/-2-22 and DIN EN 1838 for marking escape routes. The bracket of the emergency luminaire is made of a clear anodised aluminium profile. The luminaire is mounted on the ceiling. The accessories include pictograms, a wall bracket and a steel cable hanger which make the SICUROLUX-TAL300 versatile.

Technical Information


Frame: Naturally anodised aluminium profil
Glass: Transparent acrylic glass

Luminaire details

Operating time: 3 h
Ambient temperature: 10 - 30°C
Lamp: 4 W LED incl.
Protection: IP 20 / Protection class I
Visibility range: 30 m EN 1838; 30 m SFPA
Power supply: 230 V / 50 Hz
Power consumption: Operating mode LED: Operating mode D = 12 VA; Operating mode B = 5 VA; Operating mode N = 12 VA

Operating modes

B + D = permanent and standby operation [mains/emergency]
N = mains operation [without emergency light unit]

Test facility

Light with or without fully automatic self-test. The fully automatic self-test serves to independently test the operability of the emergency light.
