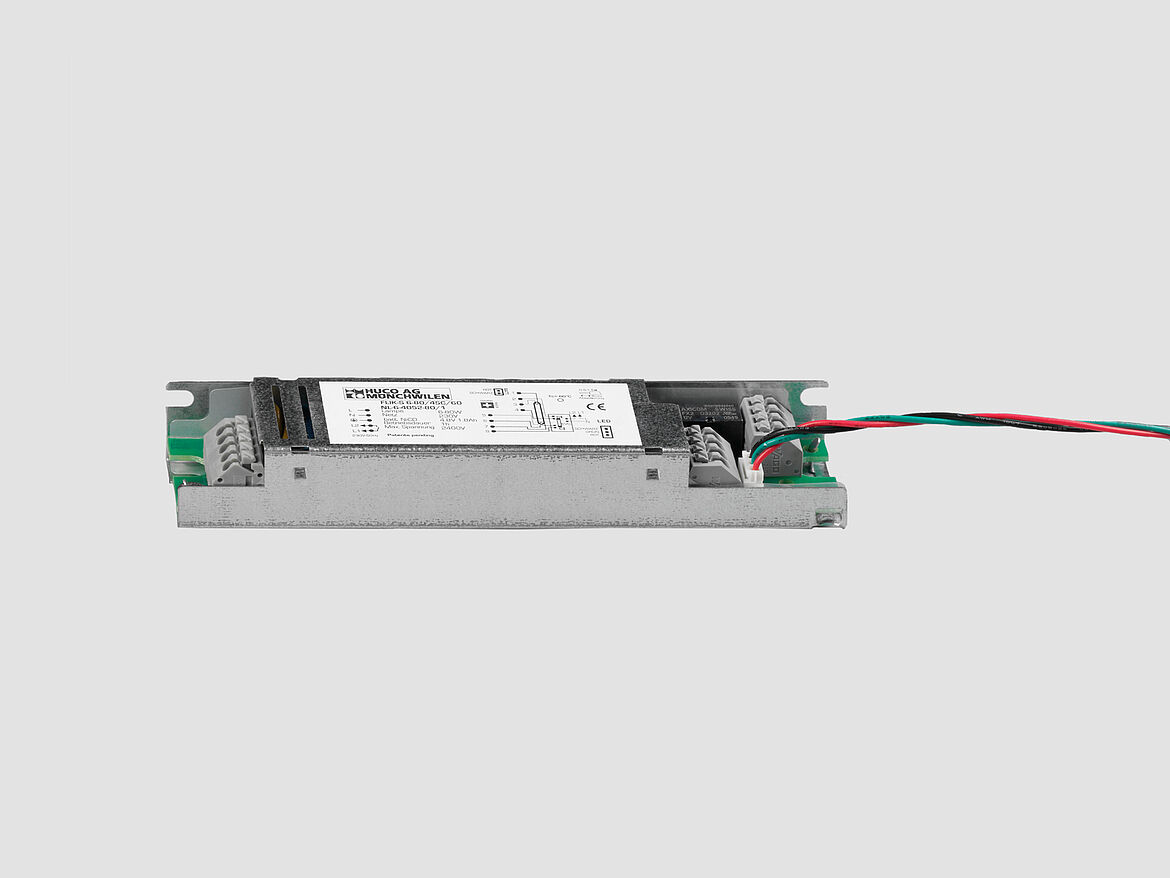

Emergency light unit

The SICUROTRON FLIK emergency lighting elements are suitable for use in emergency lighting systems according to VDE 0108 or EN 50172 in continuous or standby mode. They operate 4-pin fluorescent lamps with conventional ballasts, starter, or electronic ballasts, utilizing NiCd batteries for emergency power. The FLIK models are equipped with an automatic self-test function per IEC 62034, conducting tests approximately every 30 days, along with an annual continuous burn test starting 8 days after commissioning and reaching battery capacity. In case of a self-test error, the emergency lighting element reports the issue, and the LED status indicator monitors the condition until repair.

Technical Information


Housing: Galvanised sendzimir


Operating time: 1 h or 3 h
Batteries: NiCd
Max. ambient temperature: 5 - 50 °C
Charging time: 24 h
Protection: IP 20 / Protection class I
Mains voltage: 230 V ±10 %
Mains frequency: 50 - 60 Hz
Consumption: 3.5 VA NiCd 1 h / 4 VA NiCd 3 h


Approval [pending]: CENELEC
Approved to: IEC 61347-2-7 / EN 60598-2-22
Self-test process: EN 62034
Suitable for installations to: VDE 0108 / EN 50172


For fluorescent lamps and compact fluorescent lamps with 4-pin lamp cap 6-80 W [please see list of suitable light sources in the operating instructions].
