Single-battery emergency light and safety light

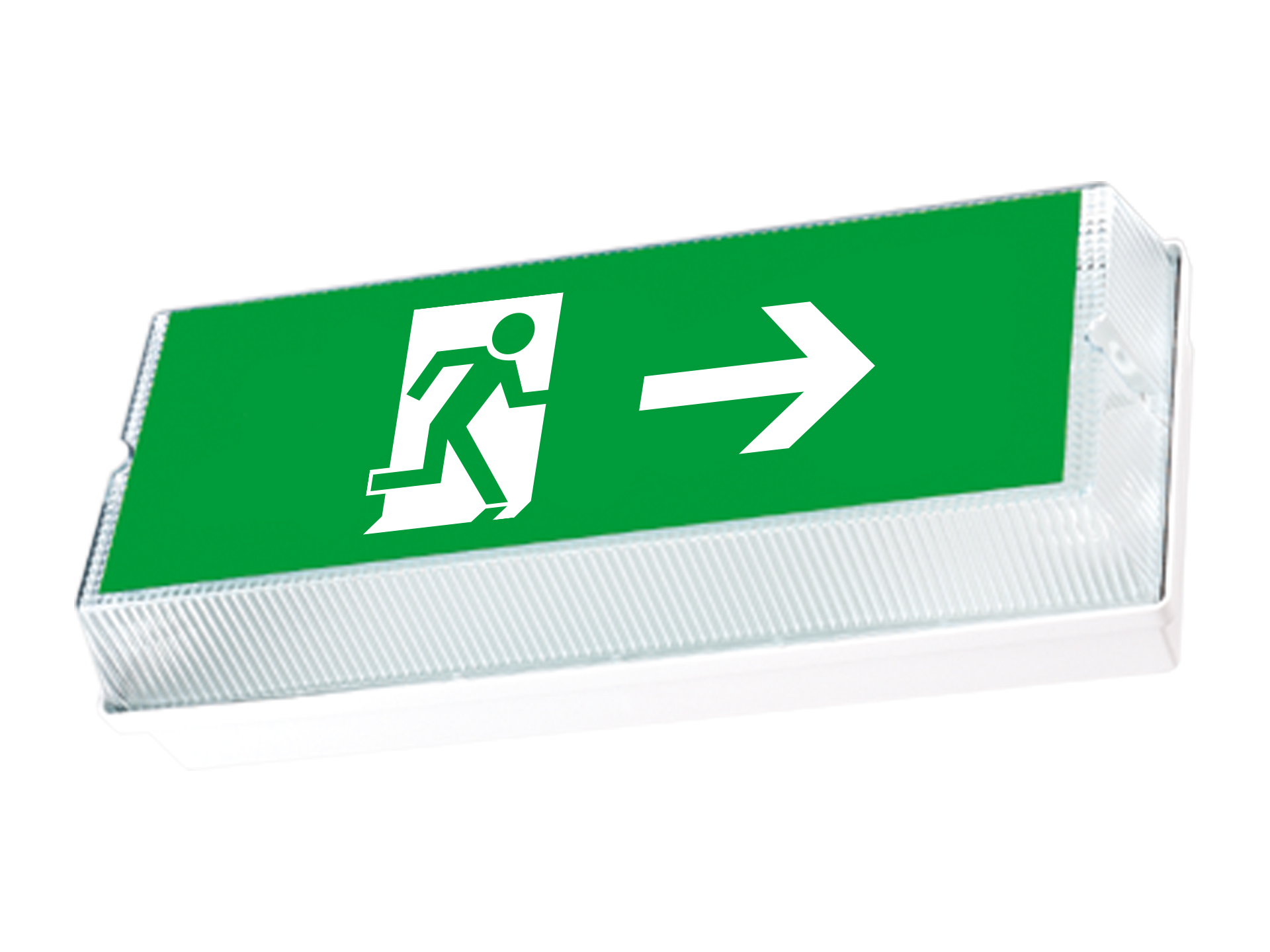

SICUROLUX-NP/NPK is an escape sign luminaire according to DIN EN 60598-1/-2-22 and DIN EN 1838. The housing is made of light grey polycarbonate. The escape sign luminaire is also available with built-in heating resistors for installation down to - 30°C. It is suitable for wall mounting. A range of accessories including pictograms and replacement glass makes it versatile.

Technical Information


Frame: Light grey polycarbonate
Glass: Transparent polycarbonate

Luminaire details

Operating time: 3 h
Ambient temperature: NP: 10 – 30°C; NPK: - 30 – + 30°C
Lamp: 12 x 0.5 W LED incl.
Protection: IP 65 / Protection class I
Visibility range: 30 m EN 1838; 30 m SFPA
Power supply: 230 V / 50 Hz

Operating modes

B + D = permanent and standby operation [mains/emergency]
N = mains operation [without emergency light unit]

Test facility

Light with or without fully automatic self-test. The fully automatic self-test serves to independently test the operability of the emergency light.
