SICUROLUX-NW [400x400]

Single-battery emergency light and safety light

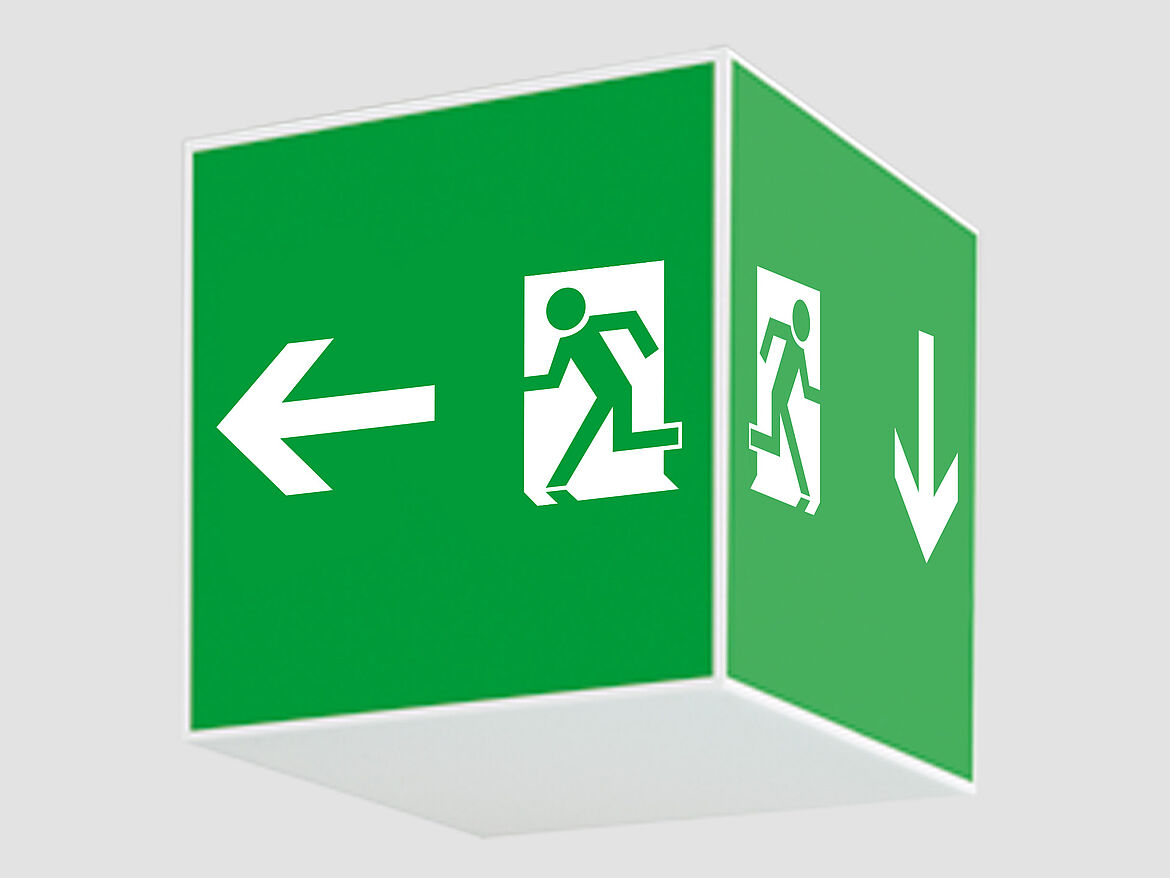

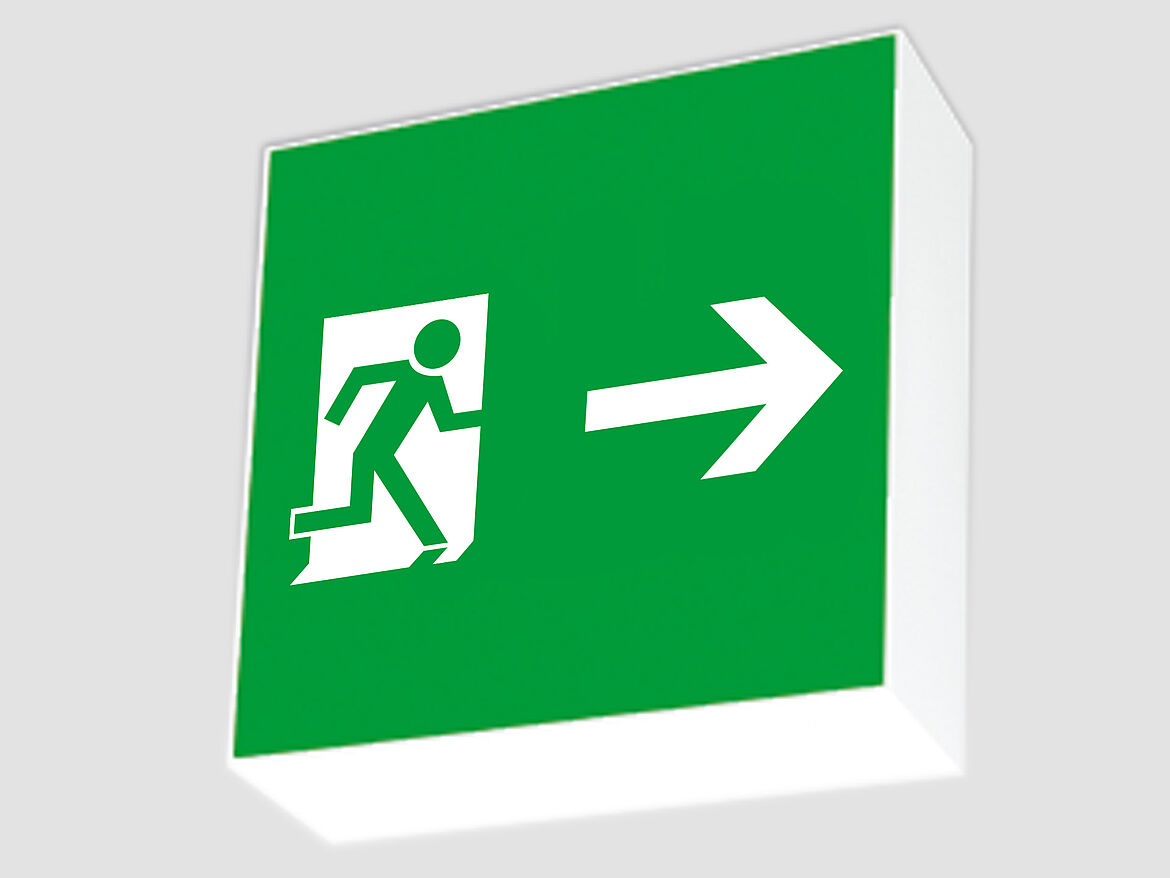

SICUROLUX-NW 400 is an LED cube escape sign luminaire in accordance with DIN EN 60598-1/-2-22 and DIN EN 183. The frame is made of white zincor and is equipped with a snap lock. The ceiling-mounted version is particularly eye-catching due to its signage, which is visible from a great distance in all directions. Wall mounting versions complete the range. Accessories such as pictograms, chain pendant, steel cable suspension, recessed housing and replacement lenses make the escape sign luminaire extremely versatile.

Technical Information

Material

Frame: White galvanised metal with glass-retaining clips
Glass: Opal acrylic glass

Luminaire details

Operating time: 1 h / 3 h
Ambient temperature: 10-30°C
Lamp: LED: 4 x 1 W resp.  4 x 3 W incl.
Protection: IP 20 / Protection class I
Visibility range: 78 m EN 1838; 39 m SFPA
Power supply: 230 V / 50 Hz
Power consumption: Operating mode LED:  Operating mode D = 12 VA; Operating mode B = 4 VA; Operating mode N = 12 VA

Operating modes

D = permanent operation [mains/emergency]
B = standby operation [emergency only]
N = mains operation [without emergency light unit]

Test facility

Light with or without fully automatic self-test. The fully automatic self-test serves to independently test the operability of the emergency light.
